6D POSE TRACKING SYSTEM

What is 6D Pose Tracking System and Why is it Important?

3D Scantech's 6D Pose Tracking System allows you to transform static position monitoring into dynamic pose tracking. This means you not only know where an object is, but also how it is tilting, rotating, or rotating in space. This ability is the foundation for precise, safe, and efficient control in a wide range of industrial applications.

Key features of the 6D Pose Tracking System:

Accurate 6DoF Pose Tracking: The system captures the full 3D position (X, Y, Z) and orientation (pitch, roll, yaw) of the object in real time, providing comprehensive data for monitoring and control.

Comprehensive Dynamic Tracking: Instead of just tracking static position, the system allows you to capture the dynamic pose of the object, opening up more complex control and interaction possibilities.
High Accuracy: With advanced technology, the system ensures outstanding tracking accuracy, meeting the strict requirements of industrial applications.
Stable tracking performance: The system maintains stable and reliable tracking even in complex working environments.
Flexibility and customization: The system can be customized and integrated with various applications, meeting diverse user needs.
Diverse applications of 6D Pose Tracking System:

Robotics: Accurately and safely guide and control robots in automated manufacturing processes.
Quality control: Track the position and orientation of parts during inspection to ensure accuracy and detect errors.
Simulation and training: Create realistic simulation environments, allowing users to interact and control virtual objects naturally.
Virtual and Augmented Reality (VR/AR): Enhance interactive experiences in VR/AR applications by accurately tracking user movements and real-world objects.
Measurement applications: Combine with 3D scanning systems to provide precise position and orientation information during complex measurement processes.
6D Pose Tracking System Specifications:

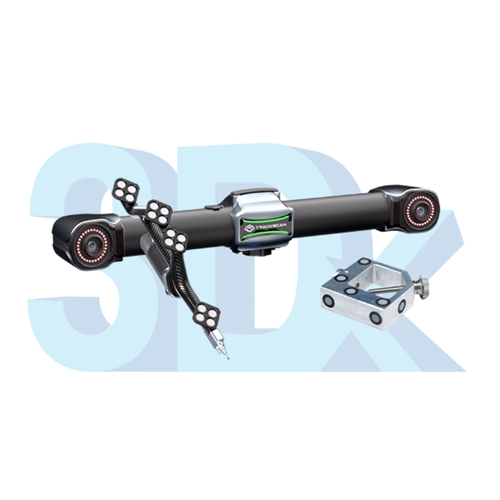

Based on the NimbleTrack and TrackScan Sharp product lines, the 6D Pose Tracking System features the following impressive specifications:

NimbleTrack Series TrackScan Sharp Series Specifications
Tracking Distance 3.2 m 8.5 m
Tracking Frequency 90 Hz 100 Hz
Tracking Accuracy 0.064 mm (at 3.2 m) 0.048 mm (at 3.5 m)
0.069 mm (at 5.2 m)
Adapter Custom
Operating Temperature -10‒40 °C
Operating Humidity (Non-Condensing) 10-90 % RH
Connectivity USB 3.0, Network, WiFi
Patent CN... US... KR... EP... CN... US... KR... EP...
Please Note: Specifications Specifications may vary depending on the specific configuration and product line of the 6D Pose Tracking System. Please contact 3D Scantech for the most accurate information.

Why choose 6D Pose Tracking System from 3D Scantech?

Advanced solutions: 3D Scantech is always at the forefront of developing 3D tracking and measurement solutions, bringing you the most modern technology.
Proven reliability: 3D Scantech products are trusted by many customers worldwide for their high accuracy and stability.
Strong integration capabilities: The system is designed to easily integrate with other software and hardware, optimizing your workflow.
Professional technical support: 3D Scantech's team of experts is always ready to provide the best support to customers during the implementation and use of the system.
Conclusion:

The 6D Pose Tracking System from 3D Scantech is a breakthrough solution that allows you to monitor and control objects in three-dimensional space accurately and efficiently. With its outstanding advantages and diverse application capabilities, this system promises to bring great strides for industries looking for automation and high precision.
