In the context of the growing industry 4.0, the need for accurate, fast and flexible measurement solutions is more urgent than ever. TrackProbe 3D Probing System from 3D Scantech emerges as a breakthrough solution, providing advanced 3D touch measurement capabilities, meeting all strict requirements in the production process and quality control.
Read moreSo what is TrackProbe 3D Probing System?

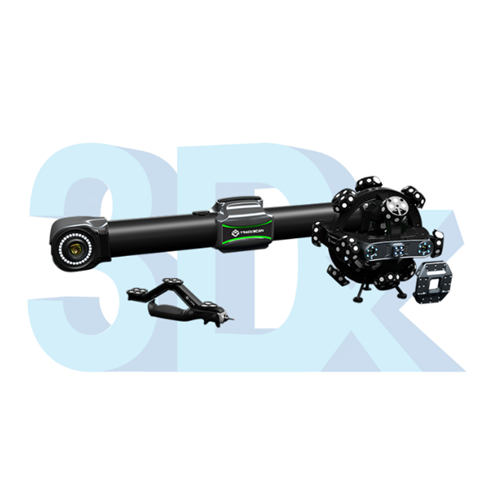

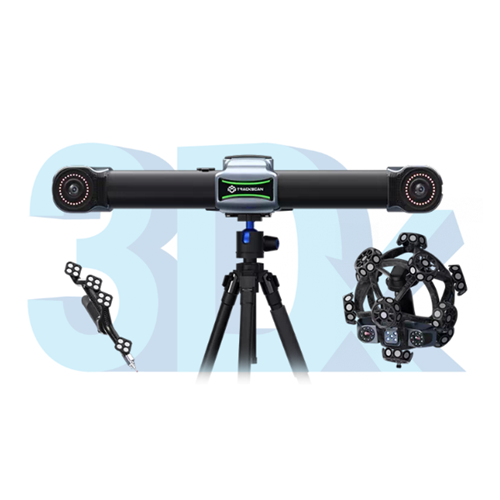

This is a 3D measurement system using touch measurement technology (probing), designed to collect precise point data on the surface of an object. The special feature of TrackProbe lies in its dynamic optical tracking capability, allowing users to move the probe freely in the workspace while still ensuring high accuracy.
Outstanding advantages of TrackProbe 3D Probing System:
High accuracy: TrackProbe is equipped with advanced technology, providing extremely high measurement accuracy, meeting the most stringent quality standards. This is especially important in industries such as automotive, aerospace, and precision equipment manufacturing.
Flexibility and mobility: With its compact design and wireless optical tracking capability, TrackProbe allows the measurement of parts with complex sizes and shapes in any location in the workspace. High mobility makes it easy to move and set up the system in different production areas.
Ability to measure hard-to-reach parts: TrackProbe's probe can reach hidden areas, deep grooves or complex-shaped surfaces that are difficult to measure with traditional measurement methods.
Easy integration with other systems: TrackProbe is designed to integrate smoothly with other 3D Scantech 3D scanning systems, as well as robotic and automation systems, creating a comprehensive and efficient measurement process.
User-friendly interface: TrackProbe's control software is designed to be intuitive and easy to use, helping users quickly get acquainted and make the most of the system's features.
Diverse applications: TrackProbe 3D Probing System can be applied in many different fields, including:
Quality inspection: Ensuring parts and products meet technical standards.
Manufacturing Measurement: Monitor and control the manufacturing process to detect deviations early.
Reverse Engineering: Digitize existing parts to replicate or improve designs.
Assembly and Alignment: Support the assembly of complex parts and ensure alignment accuracy.
Robotics and Automation: Provide precision measurement capabilities for robotic applications in smart manufacturing.
Why choose TrackProbe 3D Probing System from 3D Scantech?
Trusted Brand: 3D Scantech is a leading global provider of 3D scanning and measurement solutions, known for its product quality and professional support services.
Advanced Technology: TrackProbe is developed based on the latest research and technology in the field of 3D measurement.
Comprehensive solution: 3D Scantech provides a wide range of products and services related to 3D measurement and scanning, meeting all customer needs.
Dedicated support: 3D Scantech's team of experienced technicians is always ready to support customers during the installation, use and maintenance of the system.
TrackProbe Detailed Specifications:
Specifications Description
TrackProbe Type
Volume Accuracy (1) 0.049 mm over 10.4 m³ (3.5 m tracking distance)
0.067 mm over 28.6 m³ (5.0 m tracking distance)
Measurement Distance (per tracker) Up to 10 m
Detailed Dimensions (recommended) 0.1 m - 12 m
i-Tracker Camera Resolution 25 MP
i-Probe 500 Dimensions 510*145*89 mm
i-Probe 500 Weight 700 g
Operating Temperature Range 0–45°C (32℉-113℉)
Operating Humidity Range (non-condensing) 10–90% RH
Connectivity Wired and Wireless
Number of Targets 16
Patent ZL201520680513.1, ZL202210065778.5, ZL202221475584.4, ZL202221766958.8, ZL202320545878.8
