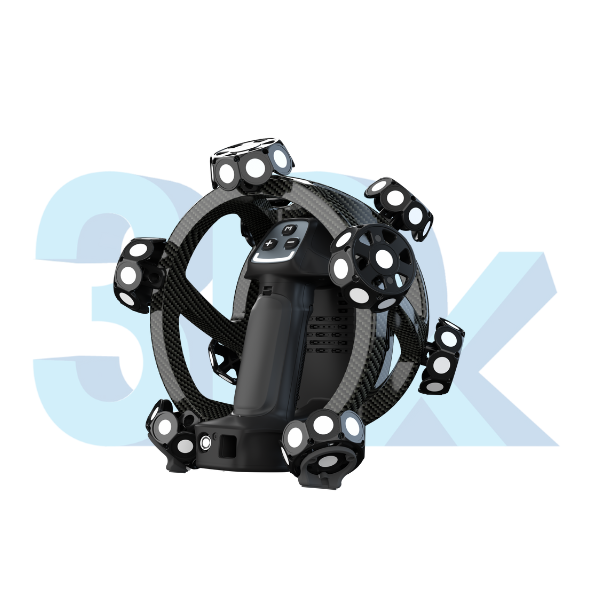

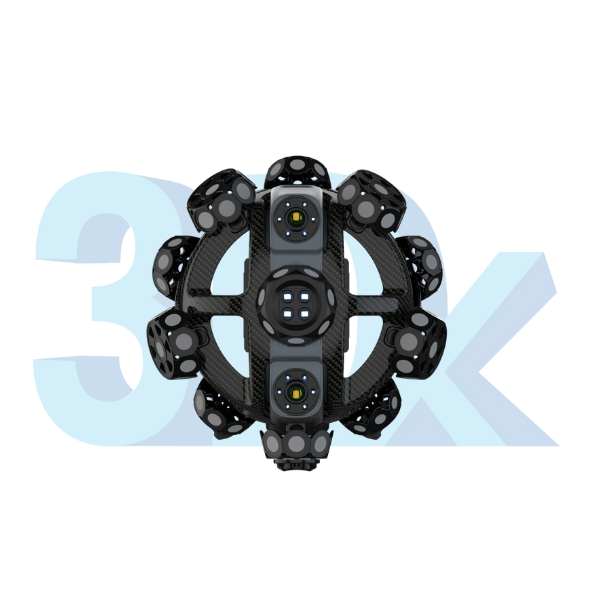

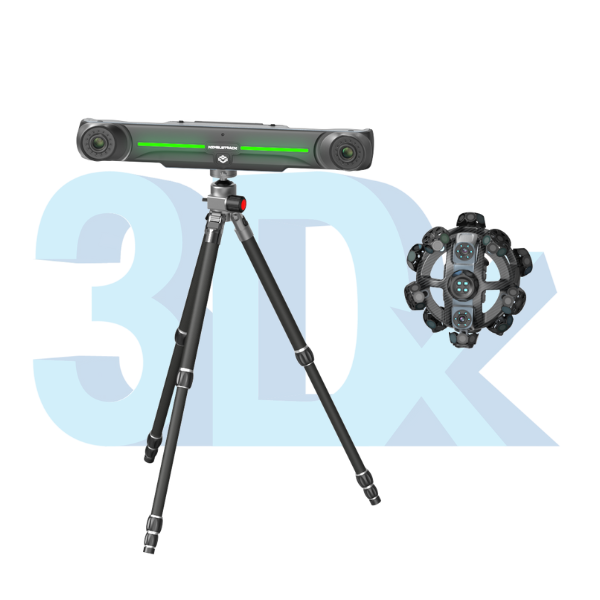

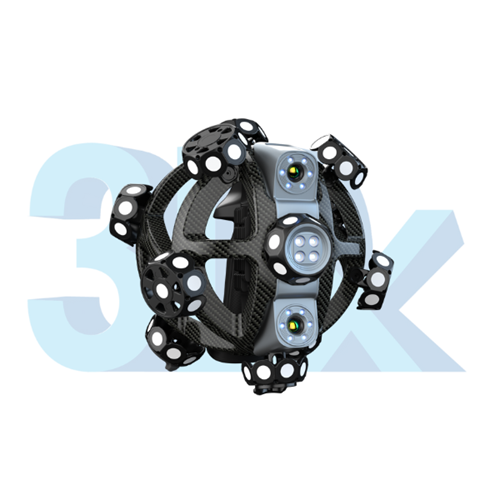

The NimbleTrack wireless 3D scanner has powerful built-in chips and battery, the 3D scanning head and optical tracker of the system are completely wireless to bring the user freedom experience. With the most advanced technology, it brings the ultimate 3D scanning experience to the user. Both the 3D scanner and tracker can be used for a wide range of applications to bring an efficient and reliable measurement experience.
Wireless Measurement
CFFIM Structure
Integrated Edge Computing
Targetless 3D Scanning
High Frame Rate 120 FPS
Compact Design
Specifications
Type
NimbleTrack-C
Scan mode
Ultra-fast scanning
17 blue laser crosses
Hyperfine scanning
7 blue parallel laser lines
Deep hole scanning
1 blue laser line
Accuracy for i-Sanner (1)
Up to 0.020 mm (0.0008 in)
Accuracy for i-Tracker (1)
Up to 0.025 mm (0.0009 in)
Tracking distance per i-Tracker
3200 mm (126.0 in)
Volumetric accuracy (2)
0.064 mm (0.0025 in)
(Tracking distance 3.2 m)
Volumetric accuracy
0.044 mm + 0.012 mm/m (0.0017 in + 0.00014 in/ft)
(With MSCAN photogrammetry system )
Hole position accuracy
0.050 mm (0.0020 in)
Laser class
Class II (eye-safe)
Resolution up to
0.020 mm (0.0008 in)
Stand-off distance
300 mm (11.8 in)
Depth of field
400 mm (15.7 in)
Scanning area up big
500 mm × 600 mm (19.7 in × 23.6 in)
Scanning frame rate
120 fps
Measurement rate up to
4,900,000 measurements/s
Dimension of i-Scanner
238 mm × 203 mm × 230 mm (9.4 in × 8.0 in × 9.1 in)
Weight of i-Scanner
1.3 kg (Net weight) (2.87 lb)
1.4 kg (Battery abd wireless module included) (3.09 lb)

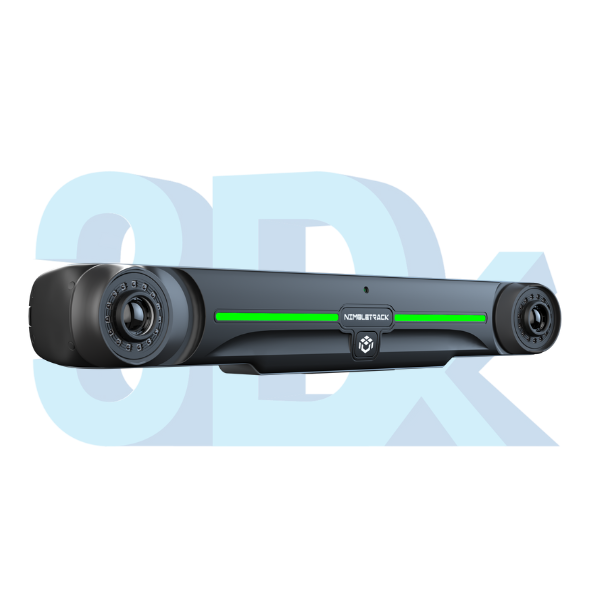

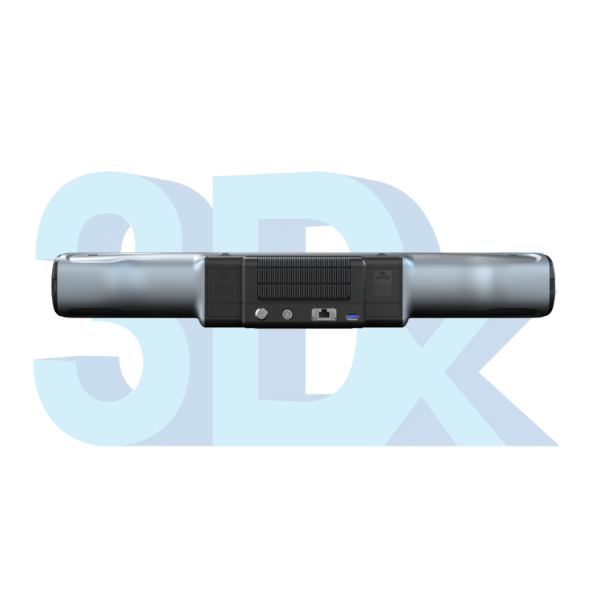

Dimension of i-Tracker
570 mm × 87 mm × 94 mm (22.4 in x 3.4 in x 3.7 in)
Weight of i-Tracker
2.2 kg (Net weight) (4.85 lb)
2.6 kg (Battery abd wireless module included) (5.73 lb)
Size of protection case
1000 mm × 425 mm × 280 mm (39.4 in × 16.7 in × 11.0 in)
Output format
.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
