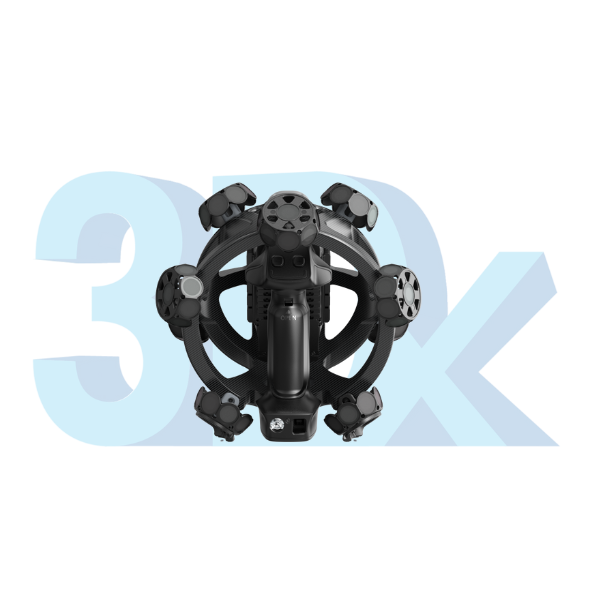

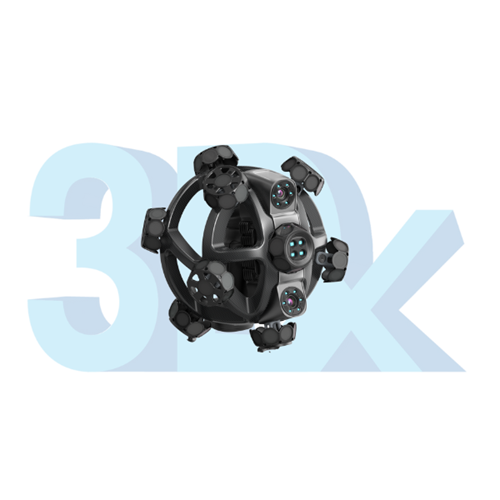

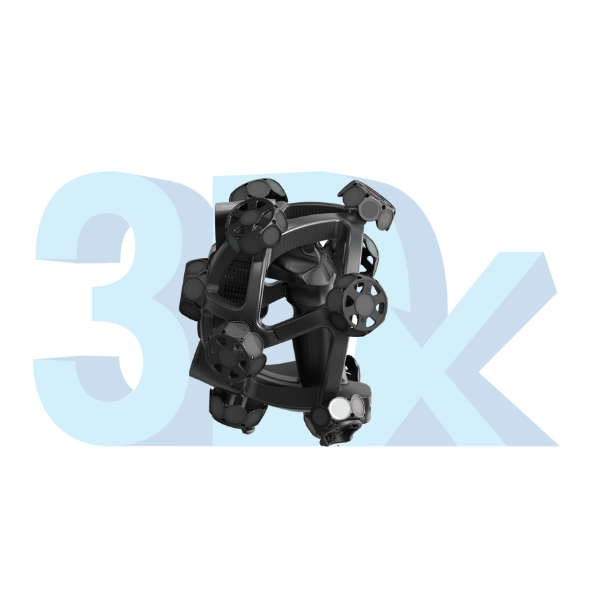

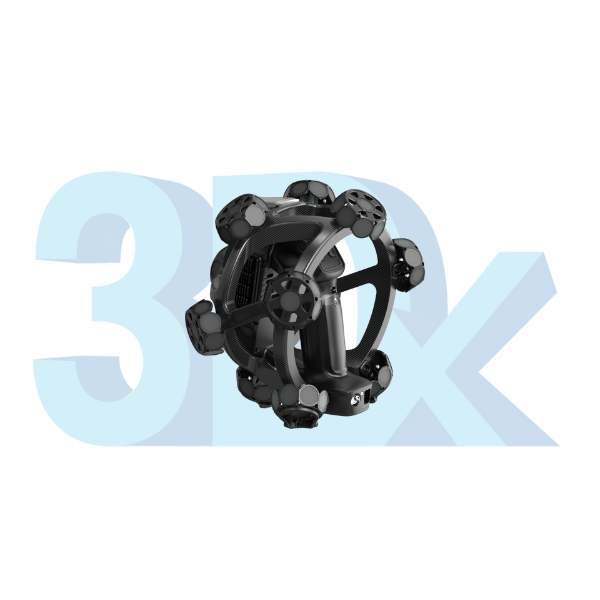

NIMBLETRACK-CR WIRELESS 3D SCANNER

Equipped with high-performance industrial cameras and intelligent algorithms, NimbleTrack-CR captures even the smallest details and most complex structures with exceptional detail and accuracy. Whether for industrial quality control or 3D preservation of cultural heritage prototypes, NimbleTrack-CR ensures accurate, detailed scans that open up new possibilities in the production, research and restoration of physical heritage.

Multiple Scan Modes

Supports ultra-fast scanning, ultra-fine scanning and deep-hole scanning, adapting to a variety of scanning needs.

Adapts to Different Environments

Handles different sizes and types of parts in both indoor and outdoor environments, even in direct sunlight.

Multi-Material Compatibility

Scans fabrics, ceramics, copper, sheet metal and many other materials without the need for spray coatings, protecting the surface from damage.

3D Scanning and Texture Mapping Capabilities

Experience a seamless cultural heritage preservation process with SCANTECH’s integrated digital workflow, powered by powerful 3D software and high-resolution texture mapping software. Leveraging high-precision 3D scanning and intelligent surface texture mapping, it faithfully reproduces color, texture, and geometry for stunning, lifelike detail.

Wireless Measurement

NimbleTrack-CR integrates edge computing for fast and stable data processing. The built-in battery on both the 3D scanner and Tracker ensures continuous scanning without the need for an external power source, providing greater flexibility and efficiency during scanning.

Integrated Compute Module
Integrated Battery
WNIC Design
Smart Resolution

Automatically adjusts the scanning resolution based on the characteristics of the object and the environment before the scan begins.

Color Map

Displays scanned and unscanned areas in different colors, helping users identify blind spots or missing data in real time, improving the completeness and accuracy of the scan.

Real-Time Multi-Resolution

Allows users to adjust the resolution in real time during the scan to match the complexity of the object, ensuring every important detail is accurately captured.

Smart Edge Detection

NimbleTrack boasts an optional module for precise edge detection, enabled by grayscale measurement. Users can accurately inspect hidden details such as holes, grooves, edges, and collect information such as location and diameter.

i-Probe 500

It can be combined with a tracking i-Probe to measure hard-to-reach areas such as reference holes and hidden points. This contact measuring probe can ensure accurate results with both wired and wireless options.

Variety of measuring ranges

Its measuring range can be flexibly expanded by adding more i-Trackers, so it can measure large-scale objects without losing accuracy.

Specifications

NimbleTrack-CR Type
Scan Modes Ultra Fast Scan 17 Crossed Green Laser Lines
Ultra Fine Scan 7 Parallel Green Laser Lines
Deep Hole Scan 1 Green Laser Line
Scanner Only Mode Accuracy(1) Up to 0.020 mm
System Accuracy(1) Up to 0.025 mm
Tracking Distance per i - Tracker 3200 mm
Volume Accuracy(2)
(With 3.2 m Tracking Distance) 0.064 mm
Volume Accuracy
(With MSCAN Image Measurement System) 0.044 mm + 0.012 mm/m
Pore Position Accuracy 0.050 mm
Laser Class II (eye-safe)
Resolution Up to 0.010 mm
Working Distance (Optimum) 250 mm
Depth of Field 300 mm
Area Scan up to 150 mm × 190 mm
Scan frame rate 120 fps
Measurement speed up to 4,900,000 measurements/s
Dimensions of i - Scanner 238 mm × 203 mm × 230 mm
Weight of i - Scanner 1.3 kg (Net weight)
1.4 kg (Battery and wireless module included)
Dimensions of i-Tracker 570 mm × 87 mm × 94 mm
Weight of i-Tracker 2.2 kg (Net weight)
2.6 kg (Battery and wireless module included)
Dimensions of protective case 1000 mm × 425 mm × 280 mm
Output format .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range -10°C–40°C
Operating humidity (non-condensing) 10-90% RH
Wireless operation mode i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, Wireless multi-tracker tacking, Edge Inspection
Wireless standard Wi-Fi 6，802.11a/b/g/n/ac
Communication mode USB 3.0, Gigabit Ethernet
Patent CN109000582B, CN211121096U, CN210567185U, CN111678459B, CN114001696B, CN114554025B, CN114205483B, CN113514008B, CN114627249B, CN112867136B, CN218103220U, CN218103238U, CN307756797S, CN113340234B, CN112964196B, CN115289974B, CN113188476B, CN218411072U, CN115325959B, CN218584004U, CN115661369B, CN218734448U, CN115493512B, CN110992393B, CN116136396B, CN113432561B, CN219834226U, CN219829788U, CN116244730B, CN116206069B, US10309770B2, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, US11493326B2
