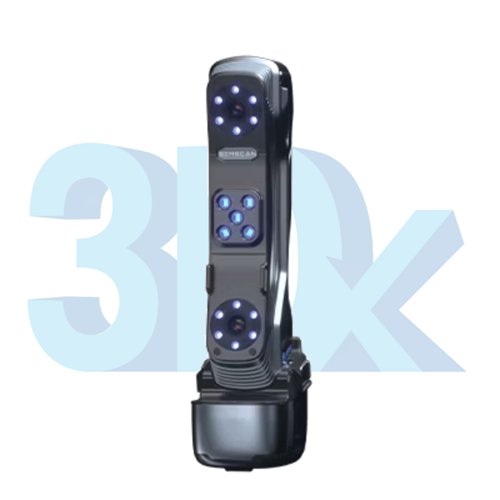

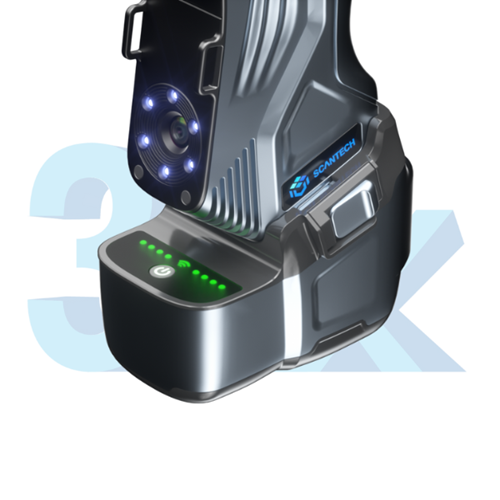

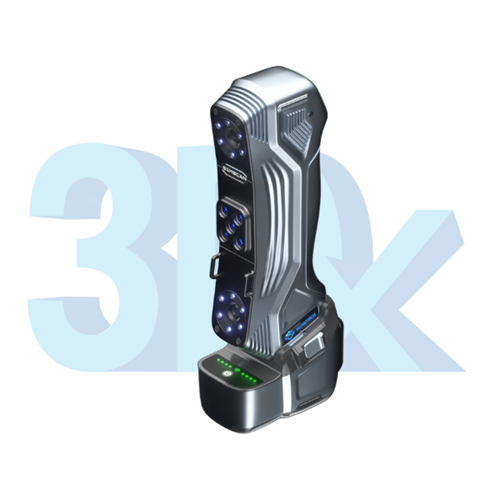

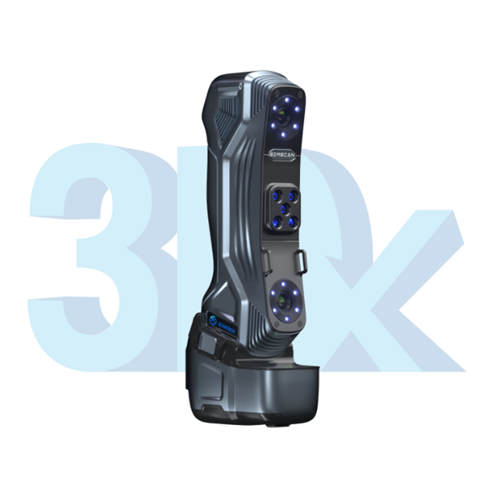

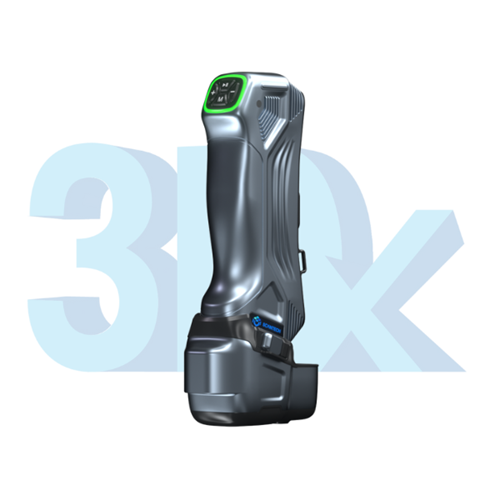

SIMSCAN-E WIRELESS 3D SCANNER

SCANTECH's SIMSCAN-E 3D SCANNER is an advanced 3D scanning solution that redefines portability and accuracy. Engineered with cutting-edge technology, this small, cordless scanner gives professionals the flexibility to capture high-quality 3D data in a variety of environments, from the factory floor to locations in the field.

The SIMSCAN-E uses advanced blue laser technology to deliver unprecedented accuracy, making it ideal for industries that require high precision. Whether you are inspecting a critical aerospace part or digitizing a cultural artifact, the SIMSCAN-E ensures that every detail is captured with utmost clarity. SIMSCAN 3D SCANNER

Ultimately Portable: Weighing just 570 grams, the SIMSCAN-E is designed for easy transport and use in tight spaces. Its compact size allows access to areas that are typically difficult to access with larger devices.
Wireless Operation: The scanner's wireless capability gives users the freedom to move without being restricted by cables. This is especially beneficial in environments where flexibility is required, such as large manufacturing plants or outdoor construction sites.
High Accuracy: The SIMSCAN-E offers accuracy of up to 0.02 mm, making it suitable for applications that require meticulous attention to detail. Whether creating digital models or inspecting manufactured parts, the scanner ensures every measurement is captured with the highest level of accuracy.
Fast Data Collection: With the ability to capture up to 6.3 million measurements per second, the SIMSCAN-E significantly reduces scanning time. This efficiency helps users complete projects faster, increase productivity and reduce operating costs.
Versatile Applications: From reverse engineering to quality assurance, SIMSCAN-E is versatile enough to handle a wide range of industrial applications. Its versatility makes it a valuable asset in a variety of sectors, including automotive, aerospace, and consumer goods manufacturing.

Technical Specifications

SIMSCAN E

Dimensions

150 mm x 80 mm x 44 mm

Weight

0.57 kg

Accuracy

0.020 mm

Scan Speed

Up to 6.3 million measurements per second

Number of Lasers

63 ultra-fast blue laser lines, 17 ultra-fine blue parallel laser lines, 1 additional deep-hole blue laser line

Distance

300 mm

Scan Area Size

700 mm x 600 mm max

Operating Temperature Range

-10°C to 40°C
