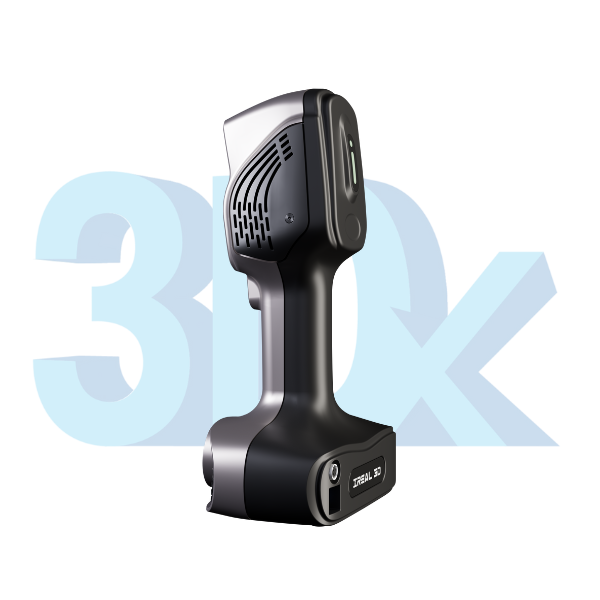

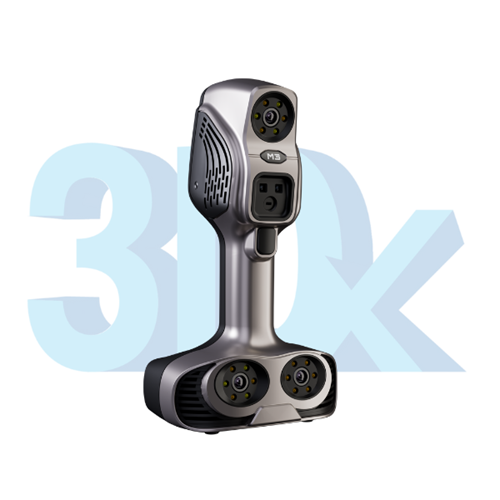

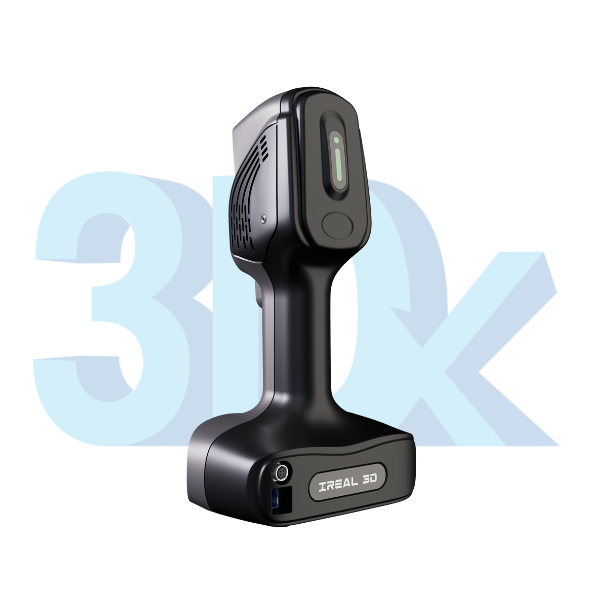

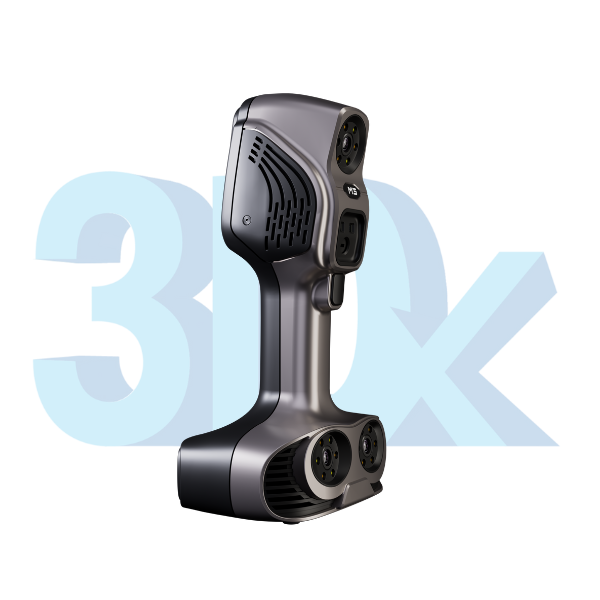

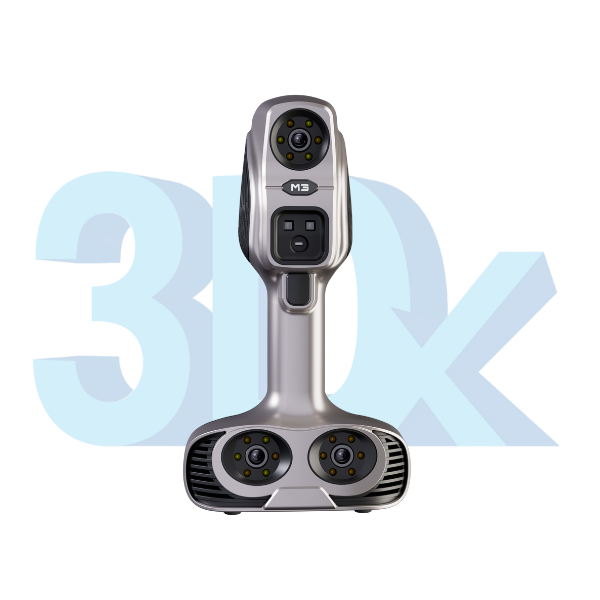

The iReal M3 color 3D scanner is an advanced handheld 3D scanner featuring dual infrared laser technology, providing flexible and efficient color 3D scanning of both the human body and other objects. With high scanning speed, impressive accuracy and eye safety features, the iReal M3 is the ideal solution for a wide range of professional applications.
Read moreOutstanding features of the iReal M3 color 3d scanner:
Dual Infrared Laser Technology: Combining parallel infrared laser (7 beams) for fast scanning and VCSEL infrared structured light for accurate scanning, suitable for many objects and purposes.
Professional human body scanning: With the ability to scan invisible light, scan hair and automatically eliminate body vibration, the iReal M3 is the top choice for human body scanning applications.
Fast and accurate scanning: Supports both fast scanning mode (up to 60 FPS) with feature/mixture/texture alignment and precise scanning mode (up to 15 FPS) with marker alignment.
Eye safety: Meets laser safety level 1 certification (EN 60825) and LED photobiological safety certification (EN 62471).
Outdoor scanning capability: Supports outdoor monochrome 3D data scanning (recommended not to scan color textures under direct light and not calibrated under direct light).
High accuracy: Basic accuracy up to 0.1 mm and volumetric accuracy up to 0.25 mm/m.
Flexible scanning area: Optimal scanning range 400 mm (distance 300-650 mm), maximum scanning field 400 x 240 mm (fast scanning mode) and 580 x 550 mm (precise scanning mode).
Texture scanning support: Capable of collecting color texture data of objects.
Convenient size and weight: Size 140×94×258 mm and weight 856 g, easy to hold and operate.
Various output formats: Support .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and many other formats, compatible with many 3D printing and design software.
Applications of iReal M3 color 3d scanner:
Medical: Body shaping, orthopedic design, prosthetics.
Fashion: Fitted clothing design, model digitization.
Anthropometric research: Collecting body size data.
Industrial design: Rapid prototyping, size checking.
Art and sculpture: Digitizing artworks, heritage restoration.
Education and research: Tools to support learning and research in many fields.
Virtual reality and games: Creating realistic 3D characters.
Main Specifications:
Light Source: Parallel Infrared Laser (7 Beams) & VCSEL Infrared Structured Light
Maximum Scanning Speed: Up to 60 FPS (Fast Scan) / 15 FPS (Precise Scan)
Basic Accuracy: Up to 0.1 mm
Volume Accuracy: Up to 0.25 mm/m
Point Pitch: 0.1-3 mm (Fast Scan) / 0.2-3 mm (Precise Scan)
Maximum Scanning Area: 400 x 240 mm / 580 x 550 mm
Dimensions: 140×94×258 mm
Weight: 856 g
Interface: USB 3.0
Output Format: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
