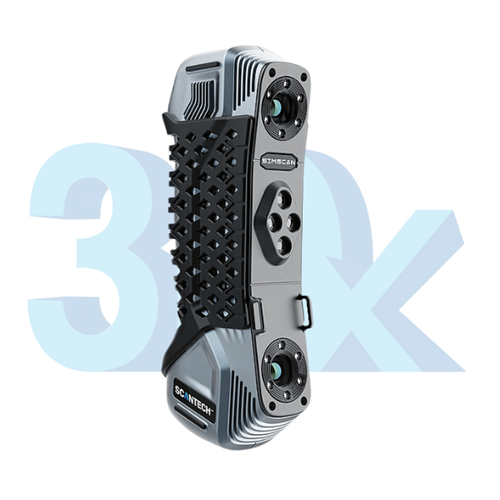

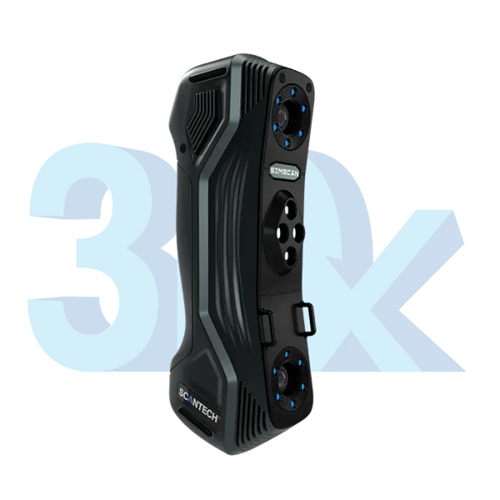

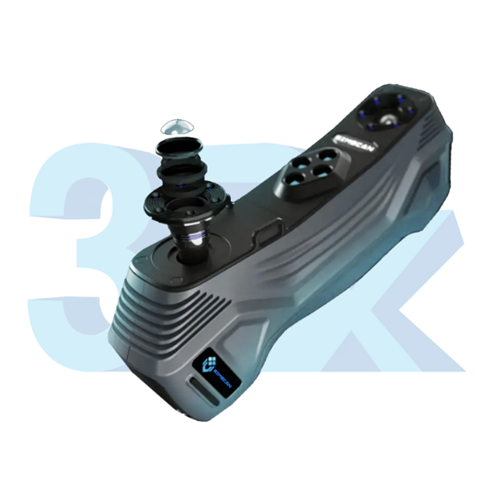

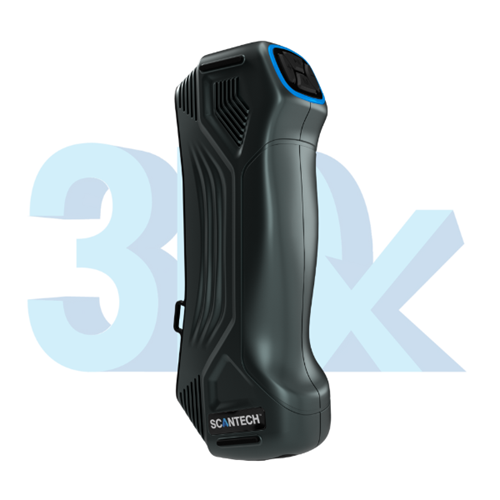

SIMSCAN 3D SCANNER is a compact portable 3D scanner that fits in the palm of your hand, specially designed for 3D scanning of narrow and hard-to-reach areas. With an all-metal housing that is extremely sturdy and reliable.
SIMSCAN is a compact portable 3D scanner in the palm of your hand, specially designed bySIMSCAN, Scanner 3D ScanTech, Vence o Internacional Red Dot Award de 2021 | RESCANM for 3D scanning of narrow and hard-to-reach areas. With an all-metal housing that is extremely robust and reliable. SIMSCAN is a groundbreaking innovation among professional 3D scanners thanks to its compact size, simplicity and powerful performance. Simscan's advanced design also won the German Red Dot Award and the Chinese Silver Design Award. SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. Ideal for 3D scanning of both narrow spaces and large-scale parts. Users can accurately capture every detail of the object and build a 3D model in a very short period of time with the help of a 3D scanner for metrology applications.
One-handed operation
The all-metal housing provides solid protection for SIMSCAN and ensures exceptional durability. Weighing only 570 g and measuring 203 × 80 × 44 mm, the SIMSCAN mobile 3D scanner offers great simplicity for scanning anything with one hand.
Due to its hollow structure, SimScan dissipates heat more efficiently. The 3D scanner performs efficient measurements with low power consumption. Thanks to its versatility, Simscan can meet a wide range of 3D measurement needs.
Intensifier for Narrow Space Measurement
Compared to competitors, SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper angle of view for 3D scanning in narrow spaces. Therefore, SIMSCAN is able to capture more accurate and complete data in hard-to-reach areas such as deep trenches and ensures that users capture full-field data.
Measure Details, Measure AnywhereSIMSCAN 3D SCANNER
With a built-in HD camera and three scanning modes, Simscan performs high-precision scanning with an accuracy of up to 0.020 mm. It can accurately capture 3D data of objects with complex surfaces or in confined areas
Remarkable Mobility
SIMSCAN boasts a compact size and excellent mobility. Whether in narrow spaces or under large objects, the SIMSCAN mobile 3D scanner can conduct 3D measurements anywhere and anytime. When combined with the AirGO Power wireless communication link, it supports 3D scanning on mobile devices and data viewing to provide a truly flexible, reliable and efficient measurement experience.
With multi-function buttons, users can switch between different modes at any time. One-handed operation allows for flexible measurement and the ergonomic design of the measuring device makes it comfortable to use. Designed with an anti-slip cover and a strap to keep users secure while scanning in all directions comfortably.
Smooth 3D experience
SIMSCAN can 3D scan objects at speeds of up to 2.8 million measurements per second thanks to its sophisticated algorithm. The device is designed to provide users with a smooth and efficient 3D digitizing experience.
Automated 3D measurement
Simscan can be paired with Scantech's automated 3D measurement system to achieve continuous measurements. Automated batch measurement overcomes the limitations of traditional methods and significantly improves efficiency for all stages of production.
Type SIMSCAN 42 SIMSCAN 30 SIMSCAN 22
Scan mode Ultra-fast scanning 17 blue laser crosses 11 blue laser crosses 7 blue laser crosses
Hyperfine scanning 7 blue parallel laser lines
Deep hole scanning 1 extra blue laser line
Accuracy(1) Up to 0.020 mm (0.0008 in)
Scanning rate up to 2,800,000 measurements/s 2,020,000 measurements/s 1,250,000 measurements/s
Scanning area up to 700 mm × 600 mm (27.6 in × 23.6 in) 650 mm × 550 mm (25.6 in × 21.7 in)
Laser class CLASSⅡ
(eye-safe)
Resolution up to 0.020 mm (0.0008 print)
Volume accuracy(2) Standard 0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft)
Paired with MSCAN-L15 0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)
Stand-off distance 300 mm (11.8 in)
Depth of field 550 mm (21.7 in)
Output formats .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range -10℃–40℃ (14℉-104℉)
Interface mode USB 3.0
Dimensions 203 mm × 80 mm × 44 mm (8.0 in × 3.1 in × 1.7 in)
