MT COLOR 3D SCANNER

3Devok MT from Real 3DX: All-in-One 3D Scanning Technology

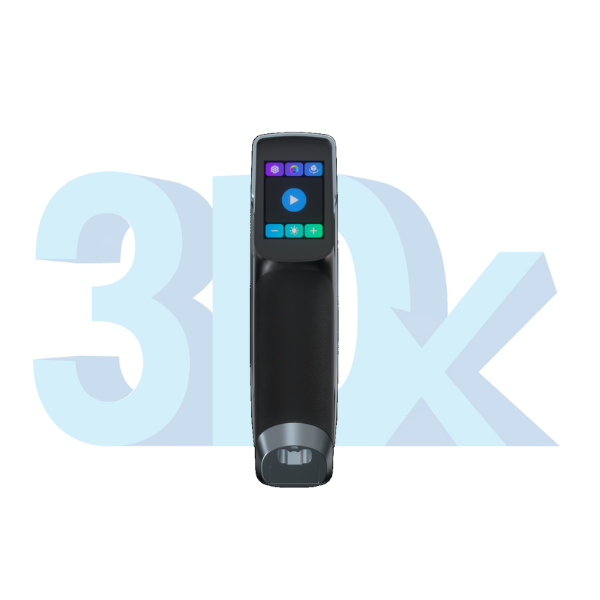

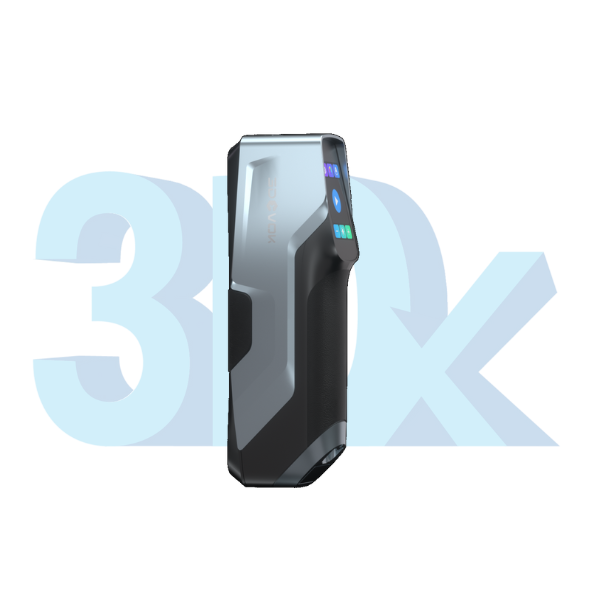

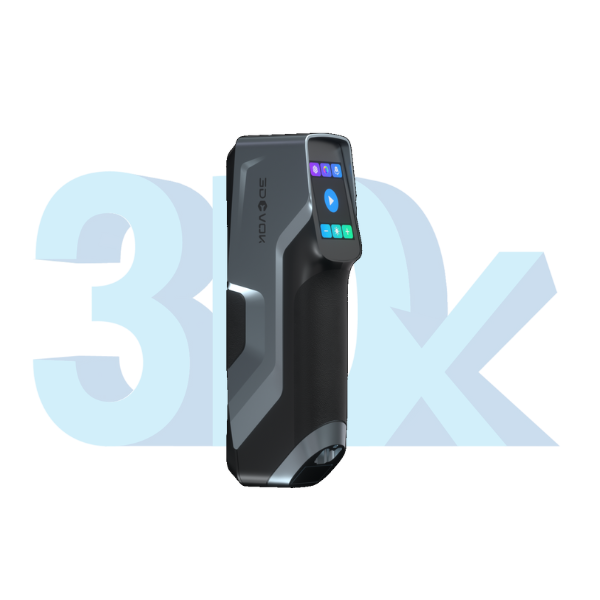

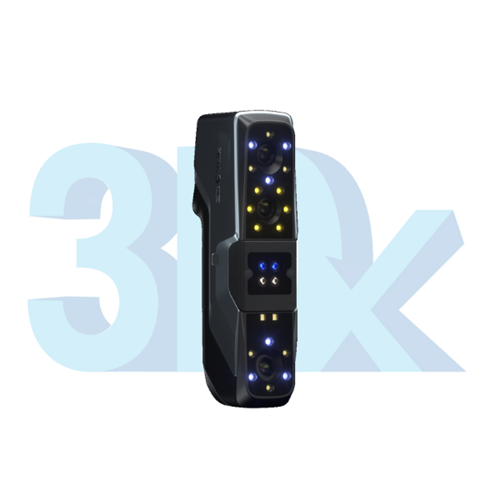

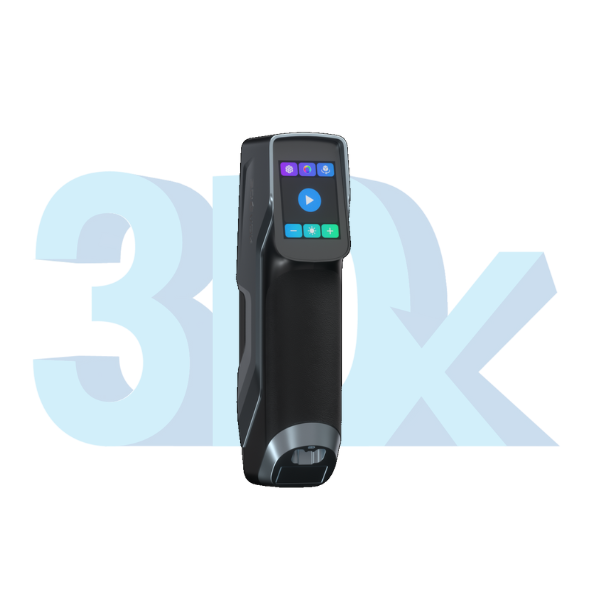

The 3Devok MT Wireless 3D Scanner is a professional 3D scanner developed by 3DeVOK, equipped with three powerful light sources: a 34-line green laser, a 22-line infrared laser, and a VCSEL infrared structured light source. This unique combination allows the 3Devok MT to meet a wide range of scanning requirements, from small-part scanning to large-object scanning, while also providing markerless scanning, low-light scanning, and scanning of glossy or reflective black surfaces without the need for coating.

Outstanding Features of the 3Devok MT Wireless 3D Scanner:

Three powerful light sources:
34-line green laser: Enables fast and efficient scanning with high precision, supports markerless scanning.
22-line infrared laser: Supports markerless scanning and low-light scanning.
VCSEL infrared structured light source: Enables markerless scanning, low-light scanning, localized detail scanning, and fast scanning of large objects with a wide field of view.
Versatile wireless scanning: The cordless design makes it easy for users to move and scan objects in any location, eliminating the hassle of cables.
Superior accuracy: With a basic accuracy of up to 0.04 mm and a volumetric accuracy of up to 0.04 mm + 0.06 mm/m, 3Devok MT ensures highly reliable scan data for professional applications.
Impressive scanning speed: Scanning speeds of up to 3,300,000 points/second (green laser), 2,450,000 points/second (infrared laser) and 4,500,000 points/second (structured light) help you get the job done quickly.
Multi-material scanning capability: Easily scan black and reflective objects without spraying.
Outdoor scanning capability: Works well even in direct light conditions.
Advanced hybrid alignment: Supports alignment according to markers, textures and geometric features, providing high flexibility and accuracy during scanning.
Texture data collection: Ability to record color and surface texture data, creating realistic 3D models.
3D printing capability: Supports popular export file formats for 3D printing such as *.obj, *.stl.
Compact and portable design: With its optimal size and weight, the 3Devok MT is easy to carry and use in a variety of working environments.
Wide Application of 3Devok MT Wireless 3D Scanner:

Product design and prototyping: Supports reverse engineering, rapid prototyping and product testing.
Automotive industry: Scanning automotive parts and components for inspection, repair and customization.
Aerospace: Applications in inspection and maintenance of aircraft parts.
Molds: Measurement and inspection of mold accuracy.
Cultural heritage preservation: Digitizing historical artifacts and cultural heritage with high precision and true color.
Healthcare: Applications in anthropometry, medical device design and other medical applications.
Education and research: Useful tools for teaching and research in many fields of science and engineering.
Arts and Entertainment: Create 3D models for movies, video games, and other artistic applications. 3Devok MT Wireless 3D Scanner Detailed Specifications:

3Devok MT Specifications
Light Source 34-Line Green Laser (Eye Safe - Class II), 22-Line Infrared Laser (Eye Safe - Class I), VCSEL Infrared Structured Light Source (Invisible)
Scan Mode Green Laser: Markerless Scanning <br>Infrared Laser: Markerless Scanning, Low Light Scanning <br>Structured Light: Markerless Scanning, Low Light Scanning, Local Detail Scanning, Ultra Large Field of View Fast Scanning
Basic Accuracy Up to 0.04 mm
Volume Accuracy Up to 0.04 mm + 0.06 mm/m
Point Distance 0.05 – 5 mm (Green Laser), 0.1 – 5 mm (Infrared Laser), Normal Scanning: 0.2-5 mm, Fine Scanning: 0.1-5 mm (Structured Light) structure)
Hybrid Alignment Mode (Marker & Texture & Geometric Features), By Marker, By Texture, By Geometric Features
Texture Capability Yes
Scanning Distance 150 – 1000 mm (Laser), 150 – 1500 mm (Structured Light)
Field of View 140 mm × 140 mm – 490 mm × 490 mm (Laser), 50 mm × 75 mm – 1100mm × 1000mm (Structured Light)
Scan Speed ​​Up to 3,300,000 points/sec (Green Laser), Up to 2,450,000 points/sec (Infrared Laser), Up to 4,500,000 points/sec (Structured Light)
Output Format *.obj, *.stl, *.ply, *.asc, *.mk2,*.txt,*.epj,*.apj,*.spj,*.map, *.sk
3D printing capability Supports *.stl, *.obj and other popular formats
Operating temperature 0 – 40 ℃
Operating humidity (Non-condensing) 10% – 90% RH
USB 3.0 interface
Scanner size & weight Dimensions: 215 mm × 73 mm × 53 mm; Weight: 640 g
DC power supply: 12 V, 5.0 A
Certifications CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
Recommended PC configuration OS: Win10/Win11, 64-bit; CPU: i7-13650HX or higher; RAM: 32GB or higher; Graphics card: NVIDIA discrete, NVIDIA RTX3060 or higher; Graphics memory: 6GB or higher
